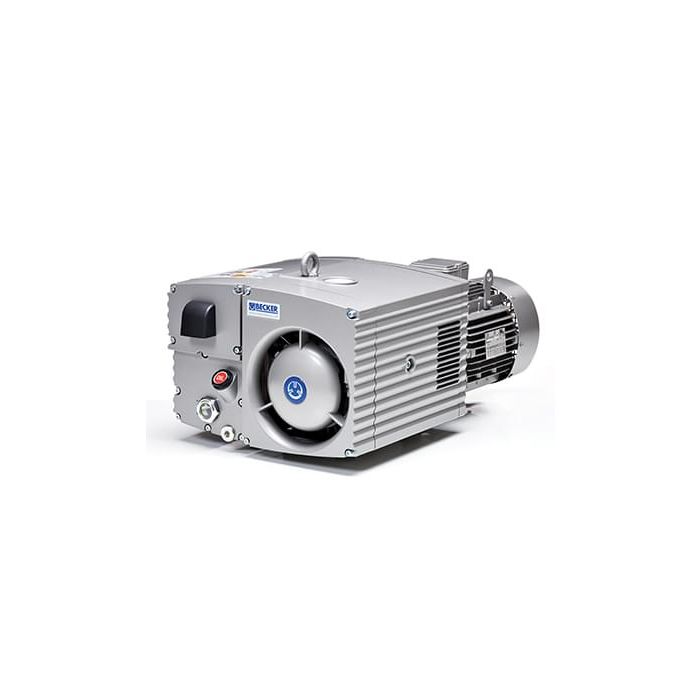

U 5.000 ROTARY VANE VACUUM PUMP

Oil flooded rotary vane vacuum pumps with two stage oil separation, pressure differential lubrication, integrated anti-suck back valve, integrated gas ballast valve, integrated oil filter, coupled to TEFC motor.

UNIT TYPE:
T 4.16 DV
T 4.25 DSK
T 4.40 DSK

MOTOR POWER:

Capacity	Max Vacuum	Motor Power	Speed	Noise level	Weight
CFM	Torr	HP	RPM	dBA	Lbs
49.4	0.075	2.4	1750	67	133
49.4	0.075	2.4	1750	67	133
70.6	0.075	3	1750	68	147
70.6	0.075	3	1750	68	147
116	0.075	4.8	1750	72	218
116	0.075	4.8	1750	72	218
141	0.075	6.4	1750	74	262
141	0.075	6.4	1750	74	262
