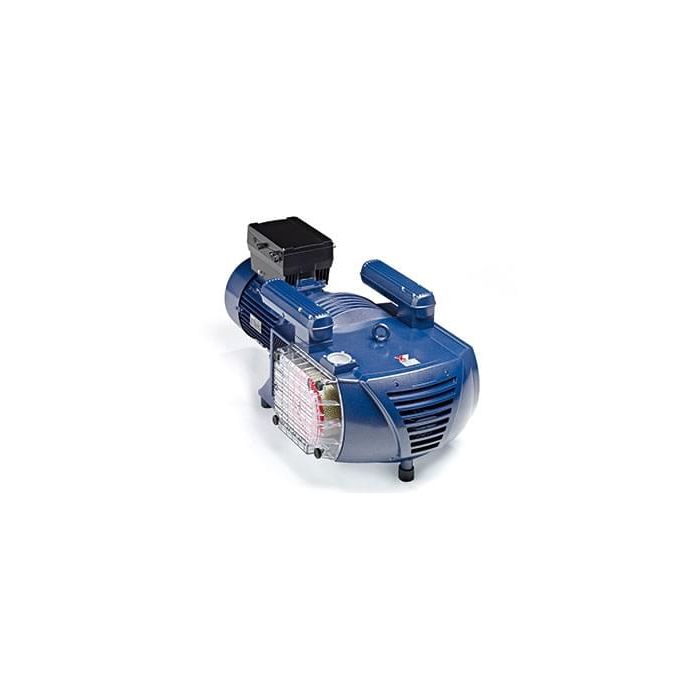

VX 4.000 ROTARY VANE VACUUM PUMP

Oil-less rotary vane vacuum pumps with carbon vanes, built in suction filters, vacuum regulating valve, blow-off valve/silencer, flanged to a TEFC motor

UNIT TYPE:
T 4.16 DV
T 4.25 DSK
T 4.40 DSK

MOTOR POWER:

Capacity	Max Pressure	Max Vacuum	Motor Power	Speed	Noise level	Weight w/motor
CFM	PSIG	In Hg	HP	RPM	dBA	Lbs
7.1		27	0.6	1750	62	35
7.1		27	0.6	1750	62	35
7.1		27	0.6	1750	62	35
11.2		27	0.94	1750	64	50
11.2		27	0.94	1750	64	50
11.2		27	0.94	1750	64	50
17.7		27	1.2	1750	67	57
17.7		27	1.2	1750	67	57
17.7		27	1.2	1750	67	57
28.2		27	2	1750	72	85
28.2		27	2	1750	72	85
28.2		27	2	1750	72	85
