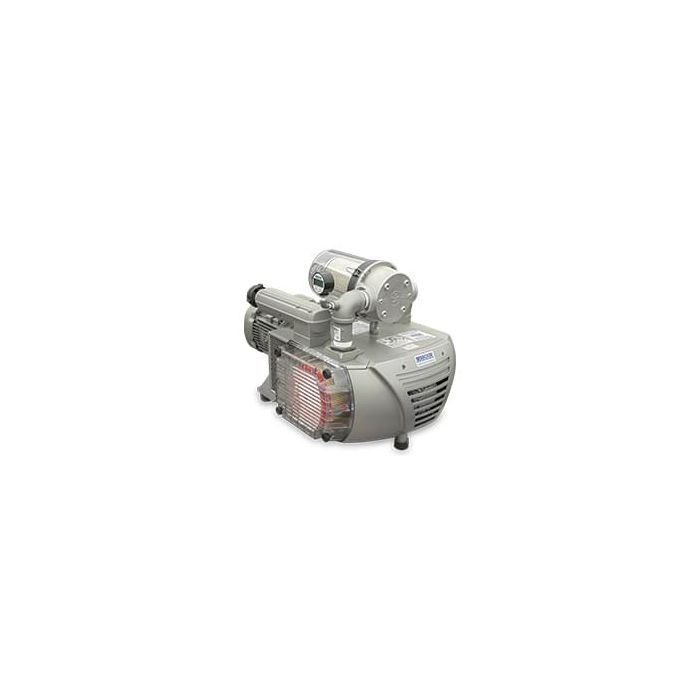

VTLF ROTARY VANE VACUUM PUMP

Oil-less rotary vane vacuum pumps with carbon vanes, built in suction filters with clear cover, vacuum regulating valve, blow-off valve/silencer, built in check valve, coupled to a B5 flange IP55 motor

UNIT TYPE:
T 4.16 DV
T 4.25 DSK
T 4.40 DSK

MOTOR POWER:

Capacity	Max Pressure	Max Vacuum	Motor Power	Speed	Noise level	Weight w/motor
CFM	PSIG	In Hg	HP (kW)	RPM	dBA	Lbs
128		24	6.4(4.8)	850	78	617
128		24	6.4(4.8)	850	78	617
168		24	8.6(6.4)	1150	79	551
168		24	8.6(6.4)	1150	79	551
174		27	12.5(9.3)	1150	79	573
174		27	12.5(9.3)	1150	79	573
250		24	17.7(13.2)	858	79	770
250		24	17.7(13.2)	858	79	770
335		22.5	24.1(18.0)	1175	80	814
335		22.5	24.1(18.0)	1175	80	814
